Product Description
GLL H Frame Scaffolding Joint Pin is a crucial component designed for use in construction scaffolding systems, particularly in H-frame scaffolds. It is engineered to provide secure and stable connections between scaffolding tubes and frames, ensuring the safety and durability of the scaffold structure during construction and maintenance activities.
Key Features
Material: Typically made from high-quality steel, the joint pin is durable, corrosion-resistant, and capable of withstanding the heavy loads and stresses associated with scaffolding systems.
Design: The H-frame scaffolding joint pin features a precise, ergonomic design to ensure easy installation and removal, providing reliable connection points that maintain the structural integrity of the scaffold.
Compatibility: Designed specifically for H-frame scaffolding, the joint pin works seamlessly with various scaffolding frames and components, providing flexibility and adaptability for different construction needs.
Safety: The joint pin is crucial for ensuring the stability and safety of scaffolding structures by holding the frames in place and preventing misalignment or detachment during use.
Durability: With its high-strength material and robust design, the joint pin is built to withstand harsh construction environments, including exposure to weather, load-bearing stresses, and rough handling.
Ease of Use: The joint pin is designed for quick and easy installation, minimizing labor time during scaffolding setup and disassembly.
Applications
Construction Sites: Used in both residential and commercial construction for erecting scaffolding frames that provide workers with safe access to elevated areas.
Maintenance Projects: Ideal for temporary scaffolding structures during building repairs or maintenance work.
Industrial Use: Perfect for industrial applications where scaffolding is required for work on machinery, equipment, or high-rise structures.
| Item | Description |
|---|---|
| Single Coupler | A fitting used to connect two scaffold tubes in a straight line, typically used for linear connections. |
| Double Coupler | A fitting used to connect two scaffold tubes at a right angle, ensuring structural stability. |
| Swivel Coupler | A coupling that allows adjustable angles, providing flexibility in connecting scaffold tubes in different directions. |
| Scaffold Tube | A steel tube that complies with BS1139/EN74 standards, typically with a 48.3mm external diameter, used as the primary support element in scaffolding systems. |
| Board Support | A fitting used to support scaffold boards, ensuring the stability of working platforms. Typically used in conjunction with support brackets. |
| Safety Net | A protective net installed on scaffolding to shield workers from falling debris or other hazards. |
| Base Plate | A component placed at the base of the scaffold to provide stability and distribute the load evenly on the ground. |
| Ledger End | A fitting used to connect horizontal ledgers (beams) to the scaffold system, ensuring the overall stability of the structure. |
| Cross Brace | A brace used to strengthen the scaffold structure, preventing lateral or longitudinal displacement. |
| Clamps | Fittings used to connect and secure scaffold tubes together, including single and double couplers, to ensure strong and stable connections. |

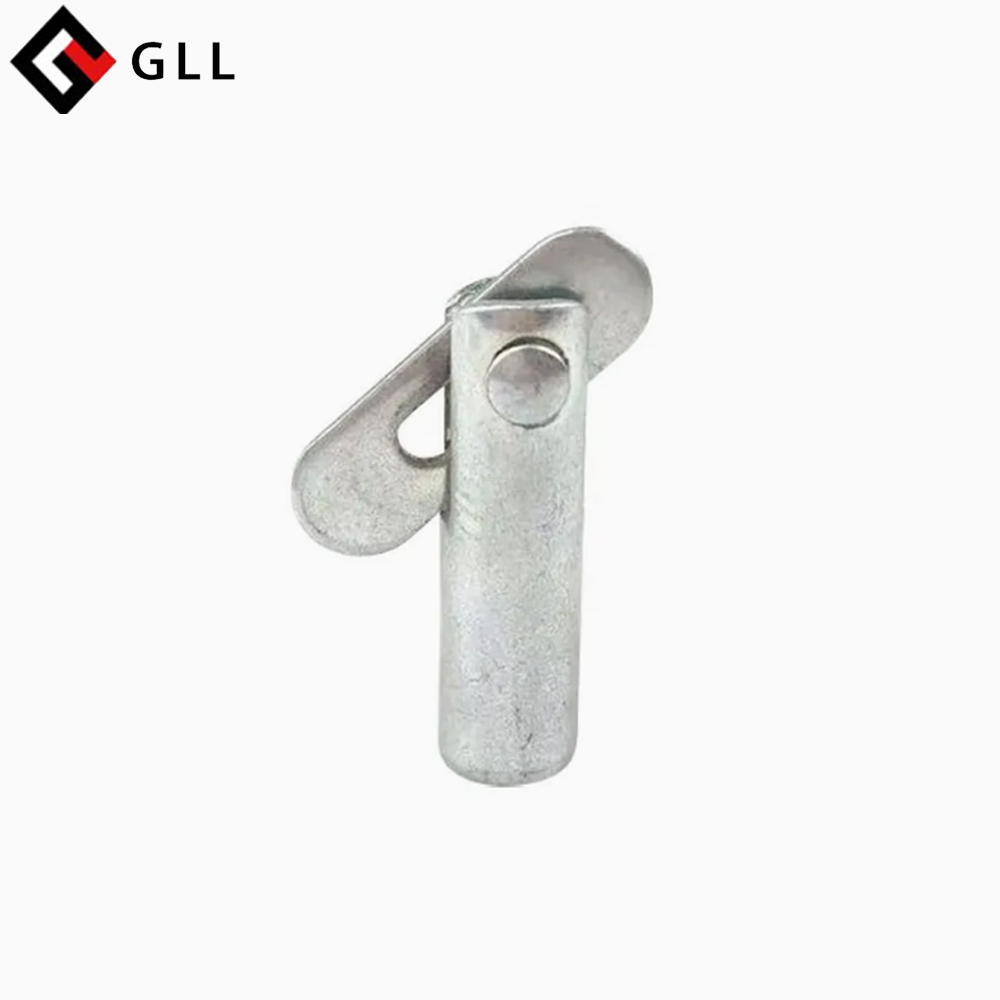

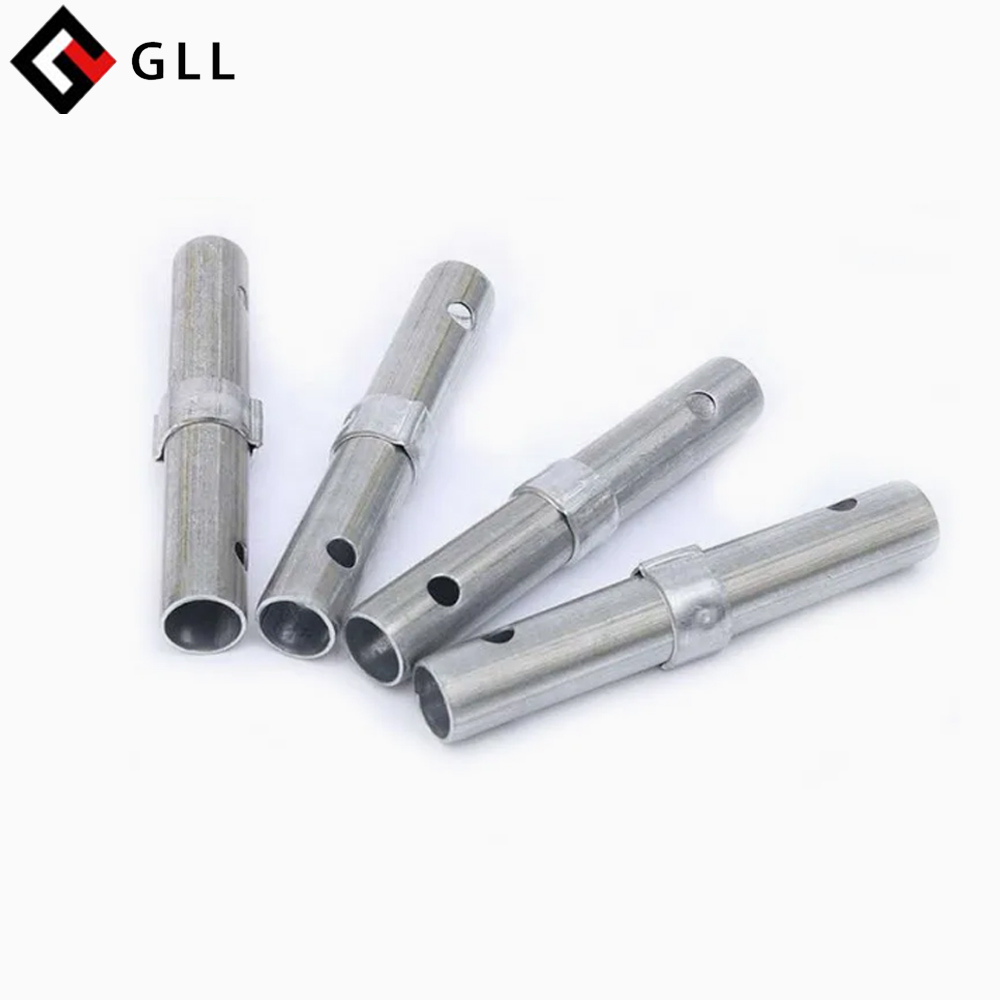

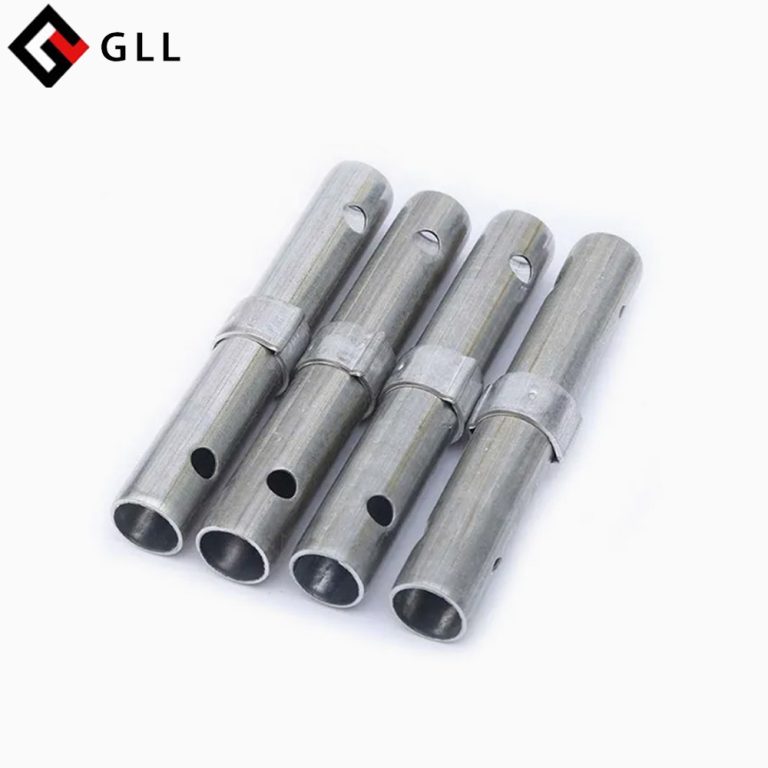

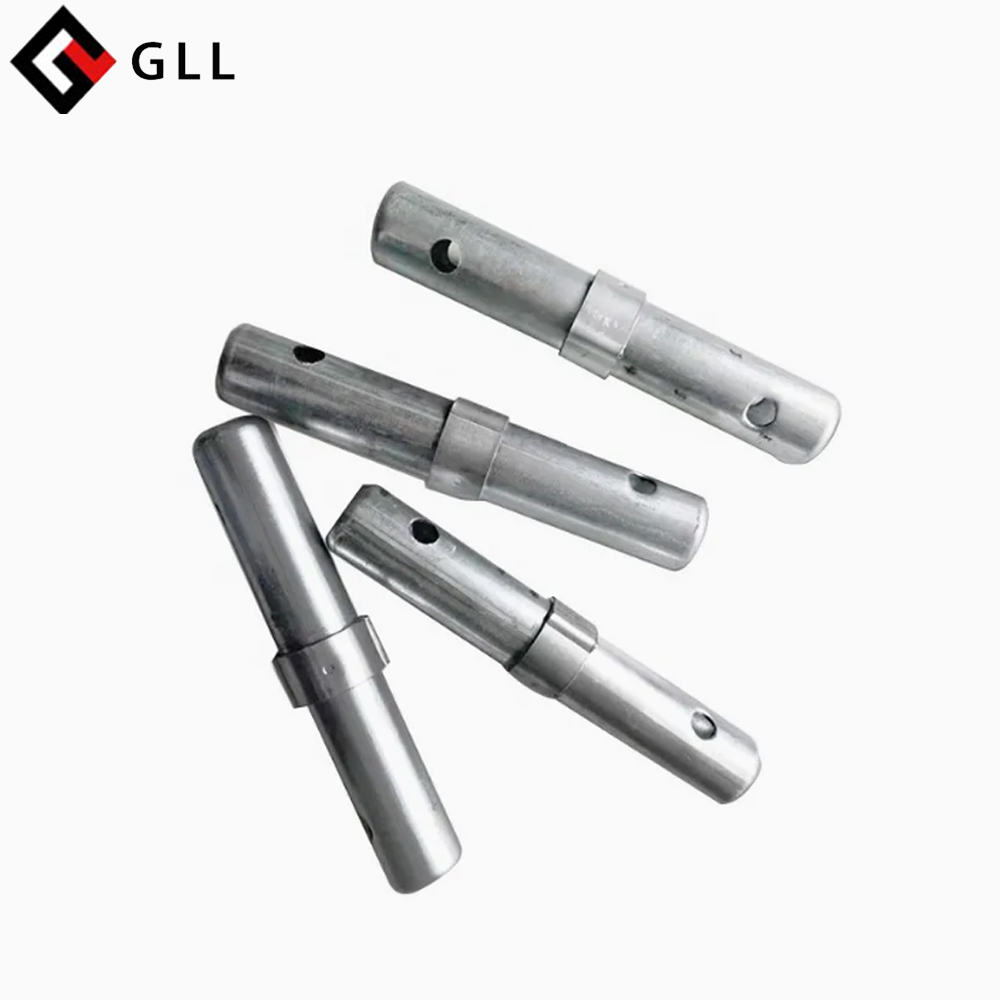

Detailed photos
Packaging and shipping
1. Carton Box Packing: Cost-effective and allows for higher loading capacity, though it may pose challenges for loading and unloading.
2. Wooden or Steel Pallets Packing: Easy loading and unloading.
3. Customized Packing: Options selected based on clients’ requirements
4. Shipping: Better to choose sea shipment, if urgent demand can choose Air shipment
