Product Description

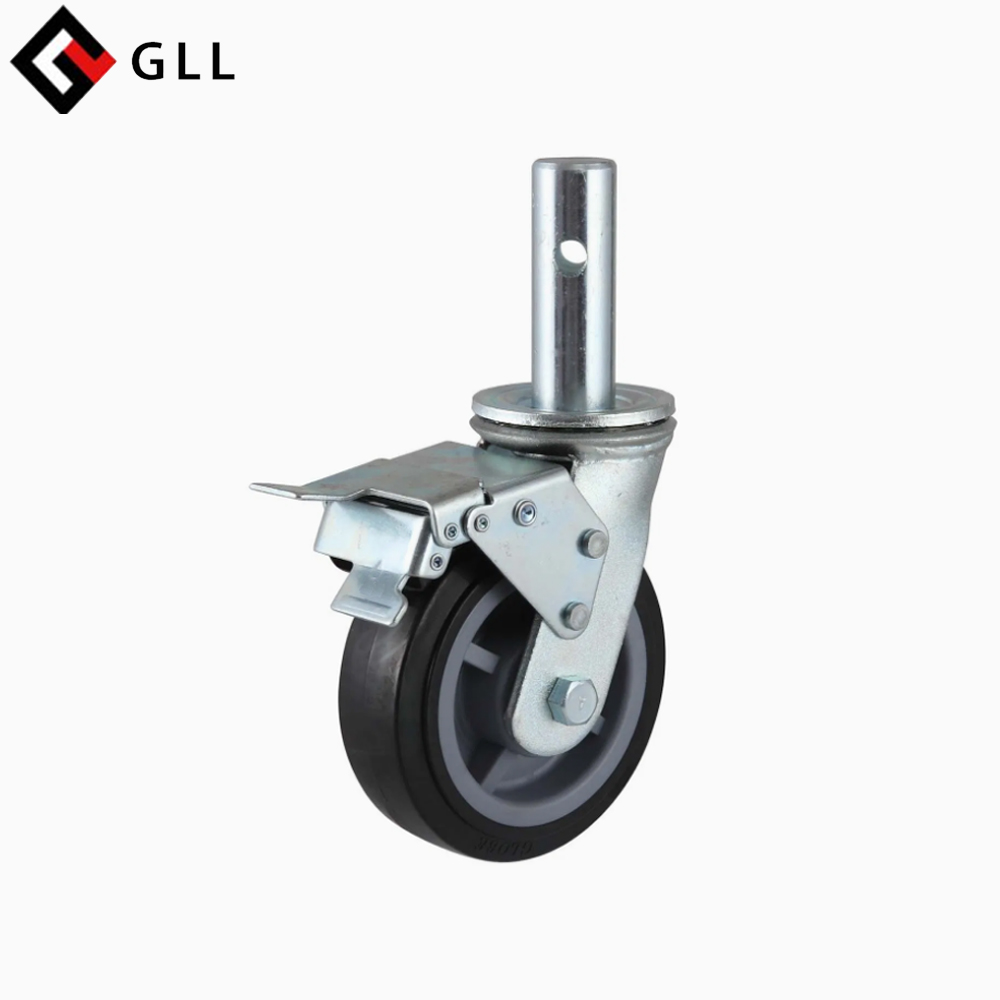

GLL Locking Caster Wheel is a heavy-duty swivel caster designed for use with scaffolding systems, especially those utilizing a 1-1/4″ square stem connection. Built for mobility and stability, it’s ideal for construction, industrial, and warehouse environments.
Specifications
Wheel Diameter: 5 inches
Wheel Width: 1-1/4 inches
Stem Type: 1-1/4″ square stem
Material: Galvanized steel frame with durable rubber wheel
Weight: Approx. 4.75 lbs per caster
Compatibility: Fits Baker/Perry style scaffolding and other standard square-post systems
Locking Mechanism: Foot-operated brake locks both the wheel and swivel simultaneously for maximum stability
Surface Adaptability: Designed for both smooth and rough terrain
Key Features
High Load Capacity: Supports up to 300 lbs per wheel
Dual Ball Bearings: Ensures smooth 360° rotation with reduced friction
Non-Marking Rubber Tread: Prevents floor damage and improves traction
Easy Installation: Quick fit into compatible square tubing scaffolds
Corrosion-Resistant Finish: Zinc plating enhances longevity and weather resistance
| Item | Description |
|---|---|
| Single Coupler | A fitting used to connect two scaffold tubes in a straight line, typically used for linear connections. |
| Double Coupler | A fitting used to connect two scaffold tubes at a right angle, ensuring structural stability. |
| Swivel Coupler | A coupling that allows adjustable angles, providing flexibility in connecting scaffold tubes in different directions. |
| Scaffold Tube | A steel tube that complies with BS1139/EN74 standards, typically with a 48.3mm external diameter, used as the primary support element in scaffolding systems. |
| Board Support | A fitting used to support scaffold boards, ensuring the stability of working platforms. Typically used in conjunction with support brackets. |
| Safety Net | A protective net installed on scaffolding to shield workers from falling debris or other hazards. |
| Base Plate | A component placed at the base of the scaffold to provide stability and distribute the load evenly on the ground. |
| Ledger End | A fitting used to connect horizontal ledgers (beams) to the scaffold system, ensuring the overall stability of the structure. |
| Cross Brace | A brace used to strengthen the scaffold structure, preventing lateral or longitudinal displacement. |
| Clamps | Fittings used to connect and secure scaffold tubes together, including single and double couplers, to ensure strong and stable connections. |
Detailed photos
Packaging and shipping
1. Carton Box Packing: Cost-effective and allows for higher loading capacity, though it may pose challenges for loading and unloading.
2. Wooden or Steel Pallets Packing: Easy loading and unloading.
3. Customized Packing: Options selected based on clients’ requirements
4. Shipping: Better to choose sea shipment, if urgent demand can choose Air shipment
