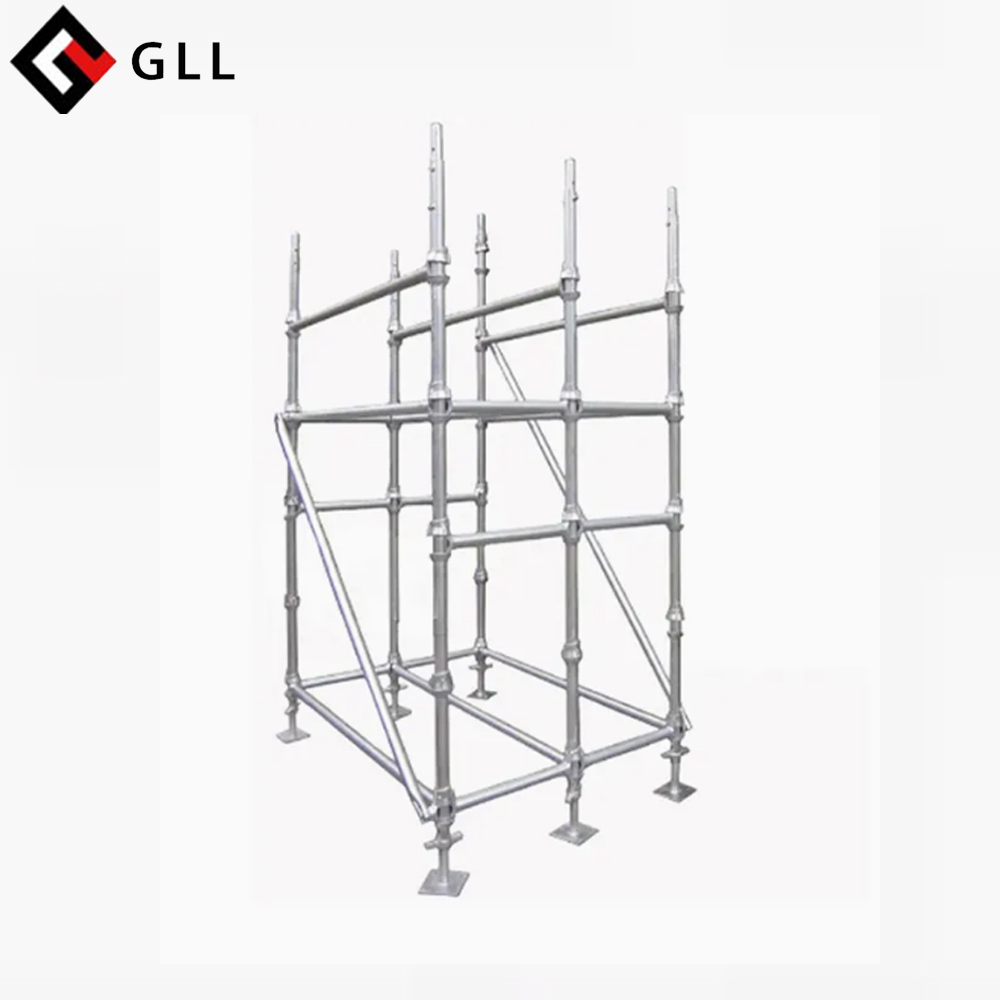

Our GLL Q235 Steel Cuplock System Scaffold adopts modular design, with Q235 low-carbon steel as the main material, combined with self-locking cup connection nodes, to achieve rapid construction and multi-dimensional adjustment.
The main design features of our GLL scaffolding cuplock system include:
Modular design: Standardized components are easy to transport, store and reuse, significantly improving construction efficiency.
Self-locking cup connection: The unique cup design ensures the stability and safety of the connection, while supporting multi-dimensional adjustment to meet the needs of different working conditions.
Material selection: GLL Scaffolding Cuplock adapts Q235 low-carbon steel , which has good toughness, plasticity and welding properties, with a yield strength of 235MPa and a tensile strength between 370-500MPa, ensuring the load-bearing capacity and stability of the scaffolding.

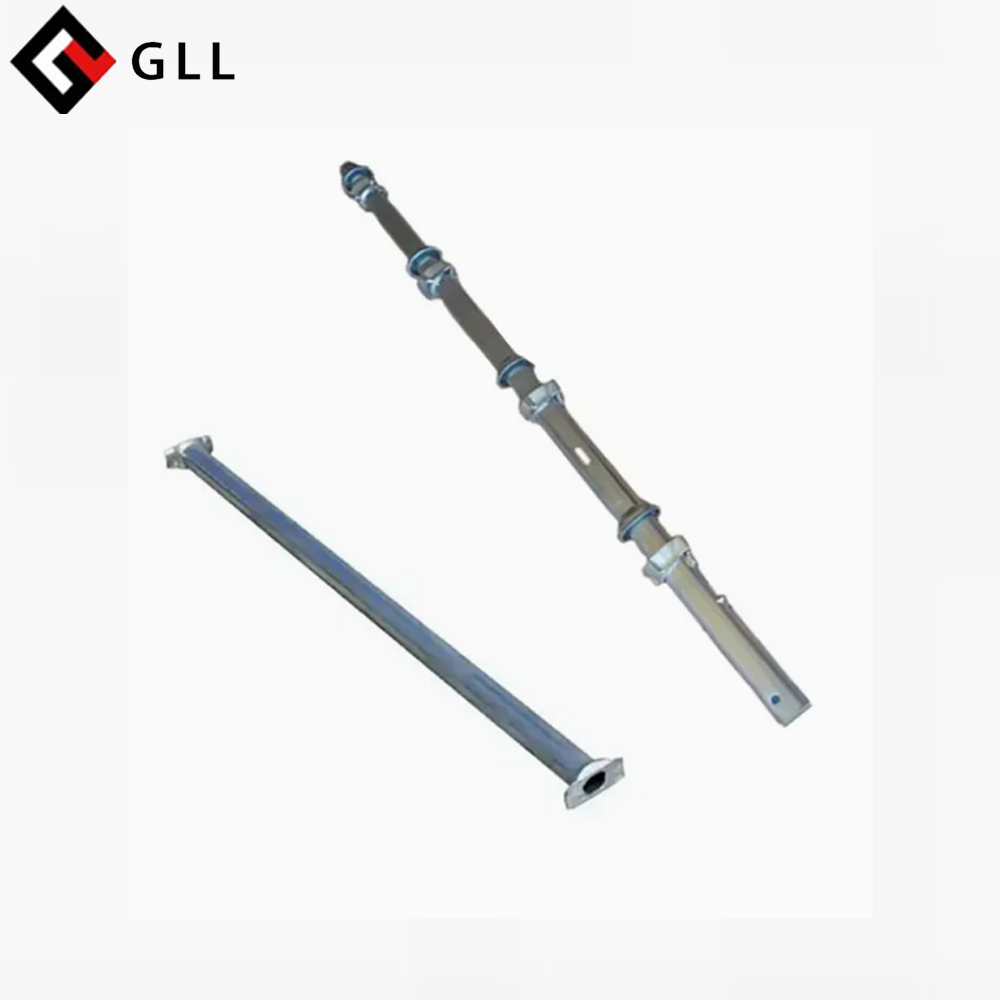

The unique locking connection design of our GLL Cuplock system scaffolding is the core advantage of the Cuplock system. Our GLL Cuplock scaffolding consists of horizontal rods, vertical rods, locks, connection accessories, etc. By inserting the vertical rods and horizontal rods into the locks and rotating them, a stable and strong structure can be quickly formed.
Our GLL Q235 Steel Cuplock System Scaffold has significant technical advantages:
Strong load-bearing capacity: GLL Q235 steel have excellent mechanical properties that ensure the high load-bearing capacity of the scaffolding to meet various construction needs.
Excellent safety performance: GLL Scaffolding Cuplock system adopts anti-slip and anti-overturning design to ensure safety during construction.
Fast erection and disassembly: GLL modular design and self-locking cuplock connection greatly increase the speed of scaffolding erection and disassembly, shortening the construction period.
GLL Q235 Steel Cuplock System Scaffold follows the national standard GB/T700-2024 and is ISO9000 certified to ensure that product quality meets national and industry standards. The company takes strict measures in quality control:
Raw material inspection: Strict inspection of Q235 steel to ensure that material performance meets the standards.
Welding process control: GLL advanced welding technology can ensure welding quality.
Finished product testing: GLL adapts Multiple tests are conducted on the finished product, including load-bearing test, safety performance test,to ensure stable and reliable product performance.
