Our GLL U-joints are forged from Q235 round steel or U16MnK/20MnK high-strength steel. After hot rolling/cold rolling, GLL U-joints are processed by precision CNC machine tools to ensure that the end face verticality error is ≤2mm and the dimensional tolerance is controlled within ±0.5mm.
Our GLL U-joints adapt the material yield strength is ≥325MPa, the tensile strength is ≥490MPa, and the elongation is ≥21%, far exceeding the standard of ordinary scaffolding accessories. The surface is double-treated with hot-dip galvanizing + electrostatic spraying, and can withstand more than 1000 hours of rust-free in the salt spray test (ASTM B117), and is suitable for coastal and high humidity environments.
Our GLL U-joint has an innovative triple locking safety mechanism:
Geometric self-locking design : The U-shaped opening has a built-in trapezoidal toothed bite surface, and the contact angle with the vertical pole is optimized to 15°, the axial bearing capacity is increased by 40%, and it can withstand a single point load of ≥25kN without slipping.
Double safety bolt system:Equipped with a gravity safety bolt + spring lock composite device, experiments have shown that it remains locked under 5g acceleration impact, in line with the EN 12811-1 impact resistance standard.
Visual status indication :The surface of the joint is integrated with a fluorescent marking strip, which automatically displays a color warning when the connection gap is greater than 0.3mm, making it easy for safety inspections to quickly identify hidden dangers.

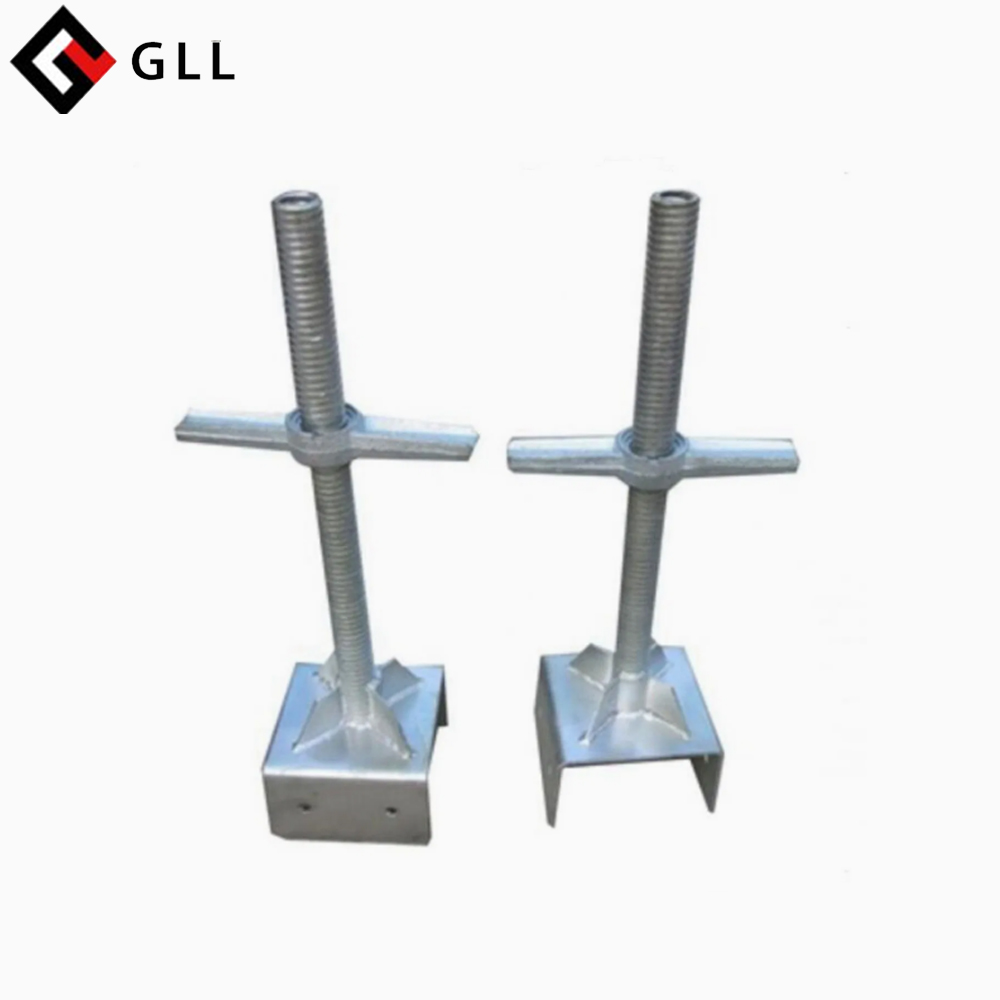

Our GLL U-Head adopts a unique U-shaped groove design, which can firmly fix the vertical support rods of the scaffolding to ensure the stability and safety of the scaffolding during construction, fully considers the needs of scaffolding construction. GLL’S design can effectively disperse the load pressure, reduce deformation or looseness caused by external forces, and further improve the safety of the construction process.
GLL U-Head For Scaffold Frame Legs can multi-size compatibility: Available in 26-38mm diameter specifications, suitable for 48.3mm/60.3mm standard scaffolding tubes, and ±3mm diameter compensation is achieved through adjustable spacers.
GLL U-Head For Scaffold Frame Legs is suitable for different environments
Super high-rise buildings : In the construction of 300-meter skyscrapers, the leg system composed of GLL U-shaped joints can withstand 12-level wind loads, and the dynamic displacement is controlled within 5mm.
Bridge maintenance : With GLL’s cantilever maintenance platform, the 50-meter high-altitude working surface of the bridge pier can be quickly constructed, with a load tonnage of 1000kg/m².
New energy infrastructure : The fatigue-resistant U-shaped joint designed specifically for wind turbine towers has passed 2 million cycle load tests and is suitable for extreme temperature environments of -40℃.
